Allemagne
| Nom,
date |
Profil |
Armement |
Poids |
Equipage |
|---|
|
Mitr./cannons |
Avions |
Blindage |
|---|
|
Les destroyers |
|

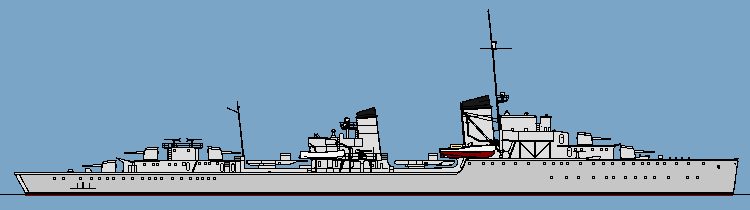

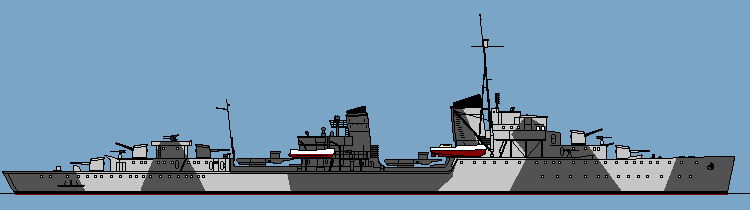

1934 |
Z1 - Z4
Class
A: Z5 - Z16 |
- 5x 12,7 cm L/45 C/34 (5")
- 4x 3,7 cm L/83 C/30
- 4x 2 cm MG L/65 C/30
- 8x 53,3 cm tubes torpilles
- 60x mines
- 4x charges de profondeur |
3'110t
-
3'519t |
325 |
|
Destroyers |
? mm |
|

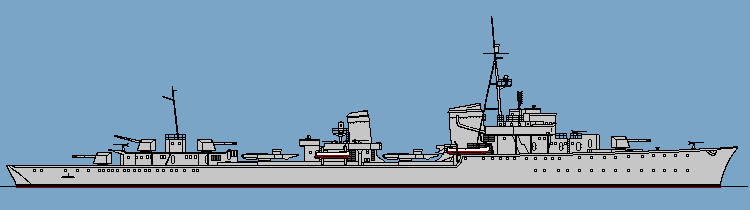

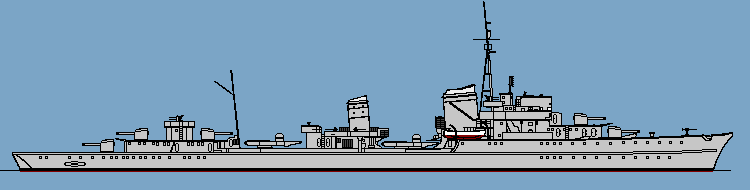

1936 |
Z17
- Z22
Class
A: Z23 - Z30
Class A (Mob): Z31 - Z34, Z37 - Z39
Class
B: Z35 - Z36,
Z43
Class
C: Z46 - Z50 |
- 5x 12,7 cm L/45 C/34 (5")
- 4x 3,7 cm L/83 C/30
- 4x 2 cm MG L/65 C/30
- 8x 53,3 cm tubes torpilles
- 60x mines
- 4x charges de profondeur |
3'415t
-
3'683t |
331
-
339 |
|
Destroyers |
? mm |
|

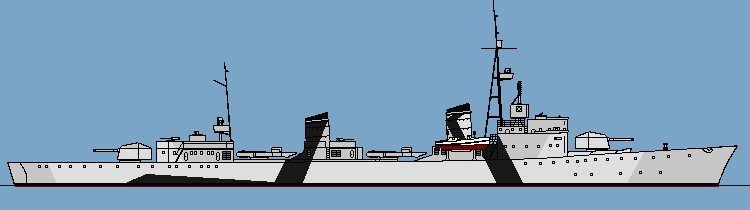

1938 |
Class A/Ac
Class
B |
- 6x 15 cm L/48 C/36 (5,9")
- 2x 8,8 cm L/76 C/32
- 4x 3,7 cm L/83 C/30
- 8x 2 cm MG L/65 C/38
- 10x 53,3 cm tubes-torp.
- 100 Mines |
4'902t
-
2'747t |
358
-
239 |
|
Destroyers |
? mm |
|
1942 |
 |
- 4x 12,7 cm L/45 C/34 (5")
- 8x 3,7 cm L/83 C/30
- 12x 2 cm MG L/65 C/30
- 6x 53,3 cm tubes torpilles
- 50x mines
- ? charges de profondeur |
2'720t |
247 |
|
Destroyers |
? mm |
|
1944 |
 |
- 6x 12,8 cm L/45 C/41 (5")
- 3x 5,5 cm L/76,5
- 14x 3 cm L/66,6 M-44
- 8x 53,3 cm tubes-torp.
- 60 mines |
3'703t |
320 |
|
Destroyers |
? mm |
|
1945 |
 |
- 8x 12,8 cm L/45 C/41 (5")
- 4x 5,5 cm L/76,5
- 12x 3 cm L/66,6 M-44
- 8x 53,3 cm tubes-torp.
(16 torpedoes)
- 100 mines
- ? Charge/prof. |
3'700t |
? |
|
Destroyers |
? mm |
|
1938
/
1940 |
 |
- 6/6x 15 cm C/36 (5.9")
- 2/4x8.8 cm C/32
- 8/8x 3,7 cm L/83 C/30
- 8/8x 2 cm MG L/64
- 10/10x 53,3 cm torpilles
-1x Ar 196 float planes |
5'713t
7'500t |
? |
|

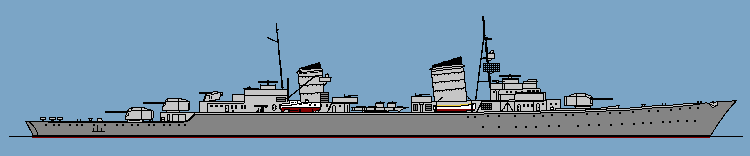

Spähkreuzer |
? mm |
|
Les torpilleurs |
|
1923
-
1945 |
1923
1924
1935
1937
1939
1940
1941
1944
Sleipner Klass |
- 3x 10,5 cm UTOF L/45 (4,1") (replaced
with 10,5cm L/45 C/28 in the late 1930s)
- 2x 2 cm MG L/65 C/30
- 6x 50 cm tubes torpilles
replaced with 53,3 cm tubes in 1931
- 30x Mines |
1'290t |
129 |
|
51 Torpilleurs |
? mm |
|
Les navires d'escorte |
|
1936
-
1945 |
F 1-F10 |
- 2x 10,5 cm
- 4x 3,7 cm Flak |
700t
-
1'794t |
? |
|
10 navires d'escorte |
? mm |
|
?
-
? |
SG 1 - ... |
- 6 bow 53,3 cm torpedo tubes
- 23 torpedoes or 17 torpedoes and 12 mines |
1'621t |
? |
|
Type XXI (134) |
? mm |
|
?
-
? |
 |
- 2 bow 53,3 cm torpedo tubes
- 2 torpedoes |
233t |
? |
|
Type XXIII (+ de 300) |
? mm |
|
© Polux |
