| Nom,
date |
Profil |
Armement |
Poids |
Equipage |
|---|
|
Mitr./cannons |
Avions |
Blindage |
|---|
|
Les portes avions |
|
XII.1938
-
VIII.1947 |
 |
- 16x 15 cm SK L/50
-
12 x 10,5 cm L/50
-
22 x 3,7 cm L/83 C/30
-
28x 2 cm MG L/65
- 4x Me 109 T
-
13x Ju 87 C
-
20x Fi 167 |
23'200t |
? |
|

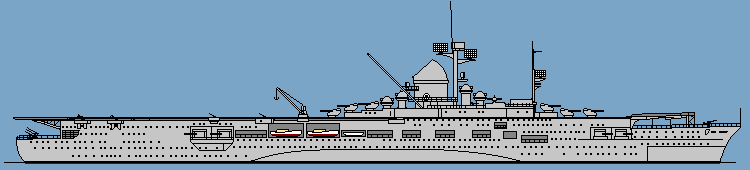

Graf Zeppelin |
60-150mm |
|
Les croiseurs de bataille |
|
VIII.1940
-
V.1941 |
 |
- 8x 38 cm L/47 C/34 (15")
- 12x 15 cm L/55 C28
- 16x 10.5 cm L/65 C/33
- 16x 3,7 cm L/83
- 20x 2 cm MG L/64: 20
- 6x Arado Ar 196 |
50'956t |
2092 |
|

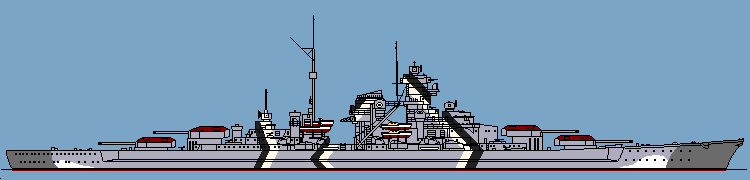

Bismark |
80-360mm |
|
II.1941
-
XI.1944 |
 |
-8x 38 cm L/47 C/34 (15")
- 12x 15 cm L/55 C28
- 16x 10.5 cm L/65 C/33
- 16x 3,7 cm L/83
- 20x 52x(1944) 2 cm MG L/64
- 8x (1942) 53,3 cm torpilles
- 6x Arado Ar 196 |
52'600 |
2608 |
|

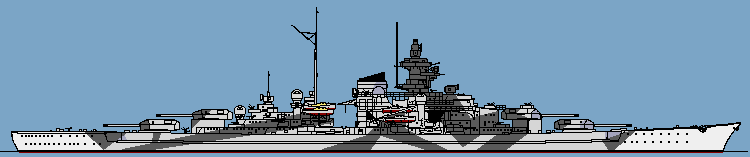

Tirpitz |
80-360mm |
|
I.1939
-
XII.1943 |
 |
- 9x 28 cm L/51 C/34 (11")
- 12x 15 cm L/55 C28
- 14x 10.5 cm L/65 C/33
- 16x 3,7 cm L/83
- 10x 2 cm MG L/64
- 6x 53,3 cm torpilles
- 3x Arado Ar 196 |
38'900t |
1840 |
|

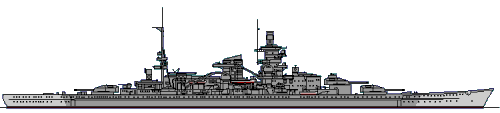

Scharnhorst |
80-360mm |
|
V.1938
-
III.1945 |
 |
- 6x 38 cm L/47 C/34 (15")
- 12x 15 cm L/55 C28
- 14x 10.5 cm L/65 C/33
- 16x 3,7 cm L/83
- 10x 2 cm MG L/64
- 6x 3,3 cm torpilles
- 3x Arado Ar 196 |
38'900t |
1840 |
|

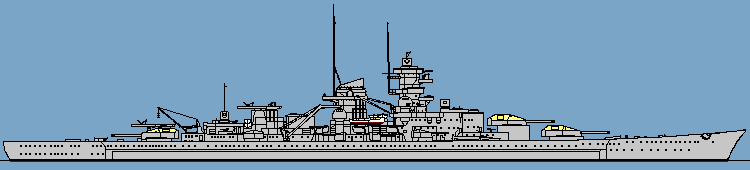

Gneisenau |
80-360mm |
|
Les "Panzerschiffe" |
|
IV.1933
-
V.1945 |
 |
- 6x 28 cm L/52 C/28 (11")
- 8x 15 cm L/55 C28
- 6x 8,8cm L/75 C/32:
rempl. par 10.5
cm L/65 C/33
- 8x 3,7 cm L/83
- 8x 2 cm MG L/64
- 8x 53,3 cm torpilles
- 2x Arado Ar 196 |
14'519t |
951 |
|

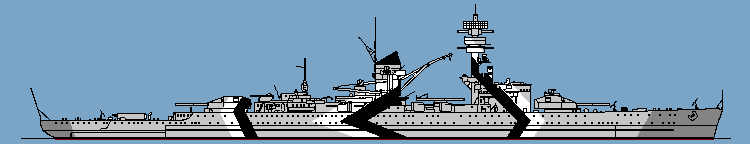

Lützow/Deutschland |
40-150mm |
|
I.1936
-
XII.1939 |
 |
- 6x 28 cm L/52 C/28 (11")
- 8x 15 cm L/55 C28
- 6x 8,8cm L/75 C/32:
rempl. par 10.5
cm L/65 C/33
- 8x 3,7 cm L/83
- (10)8x 2 cm MG L/64
- 8x 53,3 cm torpilles
- 2x Arado Ar 196 |
15'423t |
1150 |
|

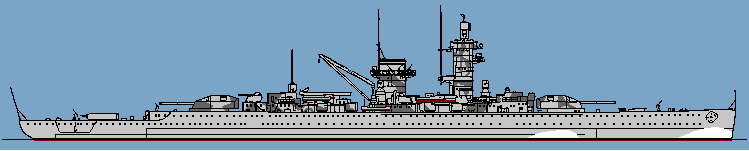

Admiral Graf Spee |
40-150mm |
|
XI.1934
-
IV.1945 |
 |
- 6x 28 cm L/52 C/28 (11")
- 8x 15 cm L/55 C28
- 6x 8,8cm L/75 C/32:
rempl. par 10.5
cm L/65 C/33
- 8x 3,7 cm L/83
- (28)8x 2 cm MG L/64
- 8x 53,3 cm torpilles
- 2x Arado Ar 196 |
16'023t |
1150 |
|

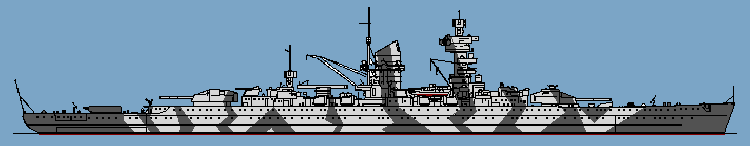

Admiral Scheer |
40-150mm |
|
Les croiseurs lourds |
|
IV.1939
-
V.1945 |
 |
- 8x 20,3cm SK (8")
- 12x 10.5 cm L/65 C/33
- 6x 4 cm Flak
- 8x 3,7 cm L/83
- 32x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 3x Arado Ar 196 |
23'200t |
~1600 |
|

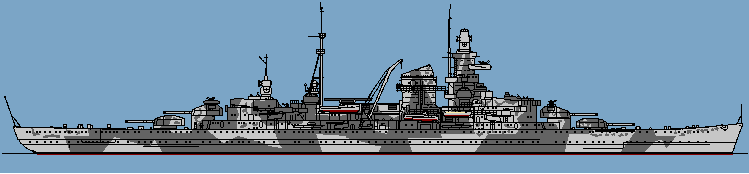

Admiral Hipper |
12-150mm |
|
IX.1939
-
IV.1940 |
 |
- 8x 20,3cm SK (8")
- 12x 10.5 cm L/65 C/33
- 6x 4 cm Flak
- 8x 3,7 cm L/83
- 32x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 3x Arado Ar 196 |
23'200t |
~1600 |
|

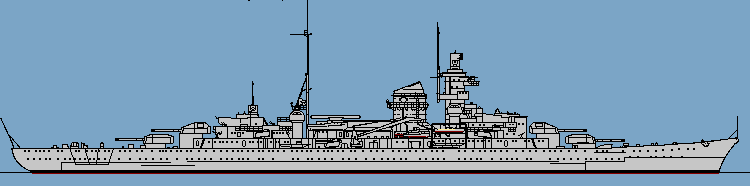

Blücher |
12-150mm |
|
VIII.1940
-
été 1946 |
 |
- 8x 20,3cm SK (8")
- 12x 10.5 cm L/65 C/33
- 17x 4 cm Flak
- 28x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 3x Arado Ar 196 |
23'200t |
~1600 |
|

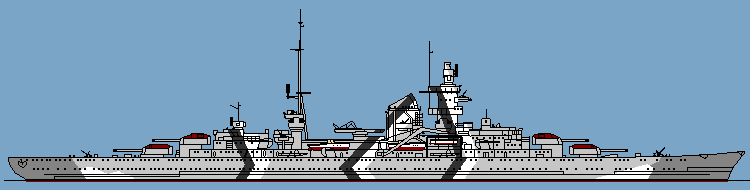

Prinz Eugen |
12-150mm |
|
I.1939
-
IV.1945 |
 |
- 8x 20,3cm SK (8")
- 12x 10.5 cm L/65 C/33
- 17x 4 cm Flak
- 28x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 3x Arado Ar 196 |
23'200t |
~1600 |
|
Seydlitz |
12-150mm |
|
VII.1939
-
1950 Russie |
 |
- 8x 20,3cm SK (8")
- 12x 10.5 cm L/65 C/33
- 17x 4 cm Flak
- 28x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 3x Arado Ar 196 |
23'200t |
~1600 |
|

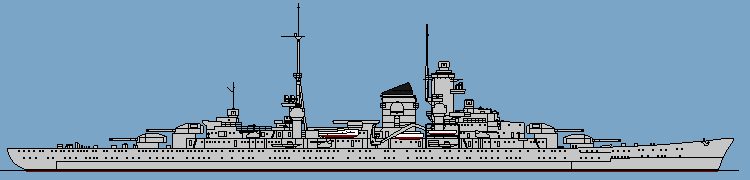

Lützow/Petropavlovsk/Tallin/Dnepr |
12-150mm |
|
