Allemagne
| Nom,
date |
Profil |
Armement |
Poids |
Equipage |
|---|
|
Mitr./cannons |
Avions |
Blindage |
|---|
|
Les croiseurs légers |
|
X.1925
-
V.1945 |
 |
- 8x 15 cm L/45 C/16 (5.9")
(later replaced with C/36)
- 0x/3x 10,5 cm C/32
- 2x (3)/ox 8.8 cm L/45
- 0x/2x3,7 cm L/83
- 6x/20x 2 cm MG L/64
- 4x 50 cm torpilles (later replaced with 53,3 cm tubes)
- 120x/0x mines |
23'200t |
? |
|

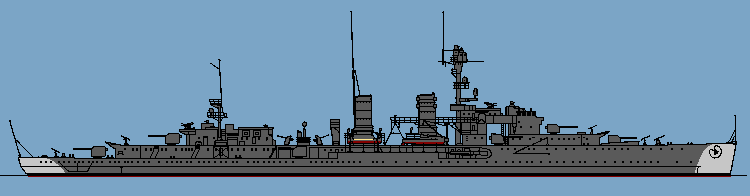

Emden 1925/1944 |
20-100mm |
|
I.1930
-
III.1945 |
 |
- 9x 15 cm C/25 (5,9")
- 6x 8.8 cm L/45 C/32
- 8x 3,7 cm L/83 C/30
- 4x 2 cm MG L/83
- 12x 53,3 cm tubes torpilles
- 120x mines
- 1x Arado Ar 196 |
8'260t |
820 |
|

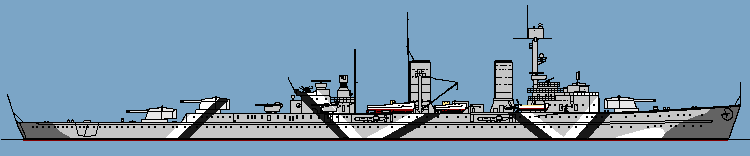

Köln |
20-100mm |
|
IV.1929
-
IV.1940 |
 |
- 9x 15 cm C/25 (5,9")
- 6x 8.8 cm L/45 C/32
- 8x 3,7 cm L/83 C/30
- 4x 2 cm MG L/83
- 12x 53,3 cm tubes torpilles
- 120x mines
- 1x Arado Ar 196 |
8'260t |
820 |
|

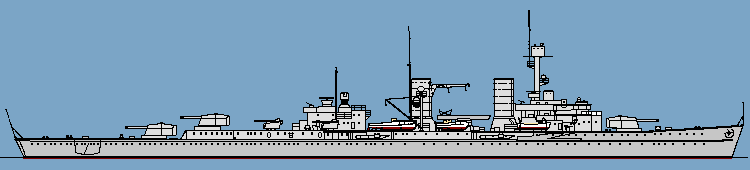

Königsberg |
20-100mm |
|
XI. 1929
-
IV.1940 |
 |
- 9x 15 cm C/25 (5,9")
- 6x 8.8 cm L/45 C/32
- 8x 3,7 cm L/83 C/30
- 4x 2 cm MG L/83
- 12x 53,3 cm tubes torpilles
- 120x mines
- 1x Arado Ar 196 |
8'260t |
820 |
|

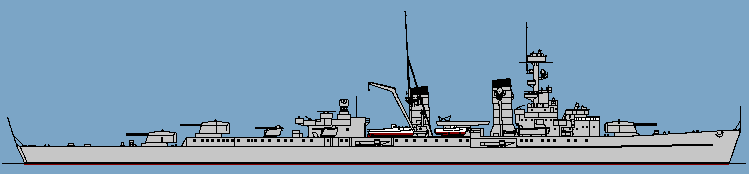

Karlsruhe |
20-100mm |
|
XI.1935
-
1931 Russie |
 |
- 9x 15 cm C/25 (5.9")
- 8x 8.8 cm C/32
- 8x 3,7 cm L/83
- 4x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 120x mines
- 2x Arado Ar 196 |
8'382t |
? |
|

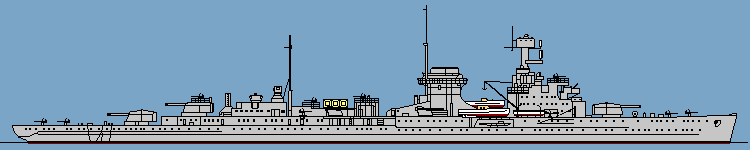

Nürnberg/Admiral Makarow |
20-100mm |
|
X.1931
-
XII.1946 |
 |
- 9x 15 cm C/25 (5.9")
- 6x 8.8 cm C/32
- 8x 3,7 cm L/83
- 4x 2 cm MG L/64
- 12x 53,3 cm torpilles
- 120x mines
- 2x Arado Ar 196 |
9'115t |
? |
|
Leipzig |
20-80mm |
|
Les anciens bateaux de ligne (blindés) |
|
VII.1908
-
III.1945 |
 |
- 4x 28 cm L/20 (11")
- 14x 15 cm L/45
(1931:12, 1935:10, 1939:0)
- 4x 8.8 cm L/45
- 4x 3,7 cm L/83 C/30
- 4x2 cm MG L/83 |
14'800t |
? |
|

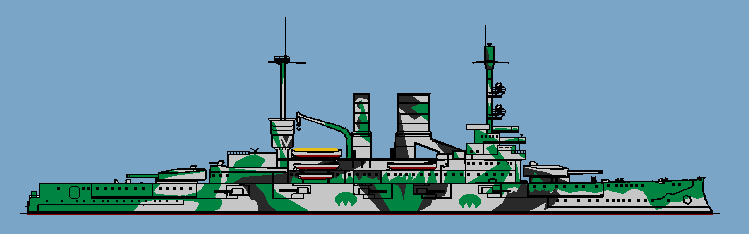

Schleswig Holstein |
40-300mm |
|
V.1908
-
V.1945 |
 |
- 4x 28 cm L/20 (11")
- 14x 15 cm L/45
(1931:12, 1935:10, 1939:0)
- 4x 8.8 cm L/45
- 4x 3,7 cm L/83 C/30
- 4x2 cm MG L/83 |
23'200t |
? |
|
Schlesien |
60-150mm |
|
Les navires antiaériens |
|
1903/
1901
-
1945 |
 |
- 5x 10,5 cm Flak
- 2x 4 cm Flak
- 4x 2 cm MG |
- |
2'700t |
? |
|

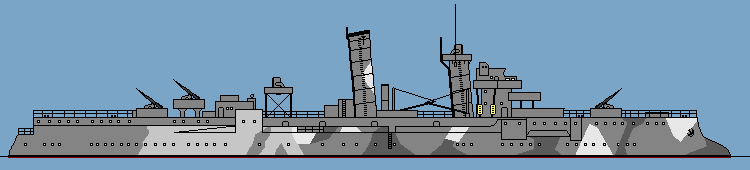

Arcona - Medusa |
? mm |
|
1940
-
1944 |
 |
- 8x 10,5 cm Flak
- 4x 4 cm Flak
- 16x 2 cm MG |
- |
3'500t |
? |
|

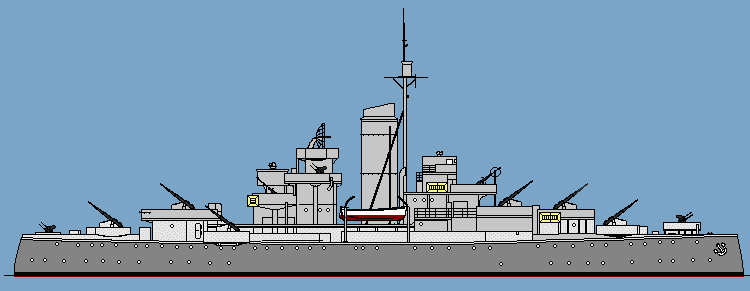

Niobe (capturé à la Hollande) |
? mm |
|
1897
-
195? |
 |
- 6x 10,5 cm Flak |
- |
3'858t |
? |
|

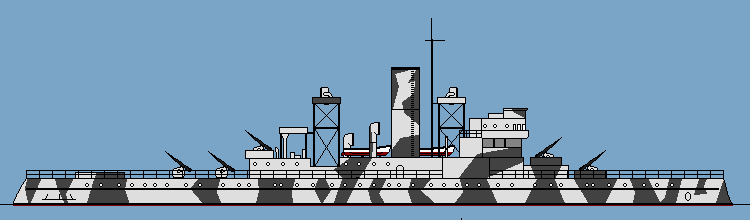

Nymphe - Thetis (capturés à la Norvège) |
? mm |
|
1906
/1902
-
195? |
 |
- 8x 10,5 cm Flak |
- |
5'080 |
? |
|

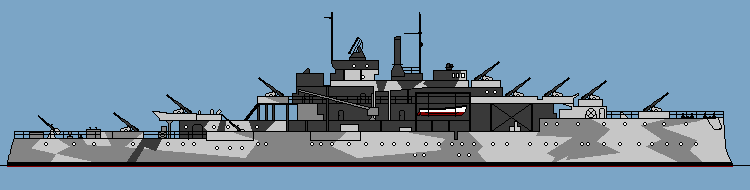

Ariadne - Undine |
? mm |
|
